Choosing the right generator for commercial or industrial use requires a solid grasp of not only the power output but also the physical footprint and related specifications of the generator in question. A 250 kW generator is considered mid-range in industrial generator categories and is commonly deployed in manufacturing facilities, construction zones, hospitals, and emergency support centers. Knowing the dimensions of this unit before it arrives on-site can help facility managers and engineers plan logistics, housing, ventilation, and power distribution systems more effectively.
What a 250 kW Generator Can Power
A 250 kW generator can power entire small- to mid-size operations, depending on the load profile. It provides sufficient capacity to run HVAC systems, machinery, data centers, and emergency services equipment. These generators are often diesel-powered and can be trailer-mounted or housed in enclosures for sound attenuation and weather protection. 250 kW generators:
- Are suitable for businesses requiring backup or prime power.
- Support continuous operation in remote or off-grid job sites.
- Can be paired with transfer switches for seamless integration.
250 kW Generator Dimensions and Weight
While models may vary slightly depending on the brand and configuration, most 250 kW industrial generators share similar footprints. Understanding these dimensions helps with space allocation and transportation planning. For example, the Generac MG250 has dimensions approximately 180.6 inches in length, 57.5 inches in width, and 111.3 inches in height, with a weight ranging from 7,099 to 7,247 lbs.
| Specification | Typical Range |
| Length (with enclosure) | 160–185 inches |
| Width | 60–80 inches |
| Height | 85–100 inches |
| Dry Weight | 6,000–7,500 lbs |
| Fuel Tank Capacity (internal) | 300–400 gallons |
Dimensions may differ slightly depending on whether the generator is in an open skid, enclosed cabinet, or mounted on a trailer with accessories such as sound attenuation panels or after-treatment systems for emissions compliance.
Key Industrial Generator Specifications
In addition to physical size, there are several performance and design factors to evaluate when specifying a 250 kW generator. These technical details can influence compatibility with your infrastructure and compliance with environmental regulations.
- Power Rating: Continuous, prime, or standby duty rating.
- Voltage Options: Common configurations include 208V, 480V, and 600V in three-phase systems.
- Fuel Type: Most units use diesel.
- Cooling System: Radiator-cooled with temperature-controlled fan operation.
- Sound Level: Typically 65–75 dB(A) at 23 feet with sound-attenuated enclosures.
- Controller: Digital control panels with remote monitoring capability.
Housing and Installation Considerations
Space planning is critical for safe and compliant installation of any industrial generator. A 250 kW generator will typically require a flat concrete pad, adequate clearance for maintenance, and room for accessories such as fuel tanks and transformers.
Recommended spacing includes:
- At least 3 feet of clearance on all sides for airflow and service access.
- 10–15 feet distance from combustible structures.
- Overhead clearance of at least 8 feet if installed indoors.
Sound attenuation and exhaust routing must also be considered, particularly in populated or enclosed environments. In some jurisdictions, local permits may require noise level documentation or emissions certifications for diesel-powered units. For detailed guidelines, refer to an Installation Guidelines for Stationary Industrial Generators.
Trailer-Mounted vs. Stationary Units

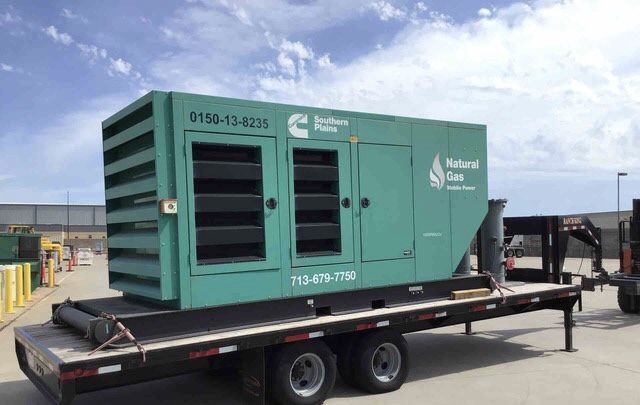

Generators in the 250 kW category are available in both stationary and trailer-mounted formats. The mobile option is ideal for job sites requiring temporary power or rapid relocation, while fixed units offer better integration into permanent infrastructure.
| Feature | Trailer-Mounted | Stationary |
| Portability | High | Low |
| Installation Time | Minimal | Requires site prep |
| Use Case | Temporary or emergency | Long-term or permanent |
| Fuel Tank Capacity | Often built-in trailer tank | Can use external large tank |
Generator Size Guide for Planning
Selecting the correct size of generator starts with understanding load requirements. A 250 kW generator is capable of handling significant electrical loads, but overestimating or underestimating a generator’s capacity can affect both efficiency and cost.
Typical applications that suit a 250 kW generator include:
- Mid-sized factories and manufacturing lines.
- Construction sites operating heavy equipment.
- Commercial buildings with HVAC and IT systems.
- Hospital backup systems for critical departments.
It’s also important to factor in startup surges from motors or compressors, and decide whether the generator will operate continuously (prime power) or as a backup (standby). Consulting a power calculator or engineer is recommended before finalizing your purchase.
Fuel Consumption and Runtime Insights
Fuel usage depends on load percentage, fuel type, and generator efficiency. On average, a diesel 250 kW generator consumes between 17 to 20 gallons of fuel per hour at full load. Running at partial load typically improves fuel economy but may require additional filtration or wet stacking prevention practices.
Sample fuel usage estimates:
- 50% Load: ~10 gallons/hour
- 75% Load: ~15 gallons/hour
- 100% Load: ~20 gallons/hour
Many generator setups include real-time fuel monitoring and alerts to manage refueling logistics, especially for off-grid operations and remote deployment sites. For detailed fuel consumption data, refer to the Diesel Generator Fuel Consumption Chart.
Why Sizing and Dimensions Matter
Incorrectly estimating the size and footprint of a generator can result in delivery issues, installation delays, or insufficient power supply. Sizing not only refers to electrical capacity but also to physical dimensions, exhaust routing, fuel storage, and placement within your facility or site.
Proper dimension planning also ensures:
- Compliance with NFPA, NEC, and EPA requirements.
- Safe access for operation and maintenance.
- Reliable ventilation and reduced overheating risks.
In fleet rental scenarios, such as storm recovery or pipeline projects, knowing the precise footprint of the generator allows for faster deployment and better coordination with other site infrastructure. For comprehensive guidelines, consult the Overview of NFPA 110.
